8XC COBOT MIG EXTRACTOR
8XC COBOT
8XC MIG COBOT EXTRACTOR
The 8XC Cobot MIG Extractor integrates one of the most efficient fume extraction structures in the welding industry. The gun comes with four different angles 22°, 35°, 45° and straight.
The 8XC Cobot MIG Extractor, combined with the ClearO2 W-series 100 and 200, captures up to 98% of welding fumes directly at the source. The 8XC Cobot MIG Extractor provides one of the safest and most effective solutions for welders and workers to breathe CLEAN AIR and better work environments and works with the UR5e, UR10e & UR16e Universal Robot’s and other Cobot in the market.
FEATURES
- ROBUST
- UNIQUE CONTACT TIP FOR MAXIMUM DURABILITY
- VARIOUS GAS NOZZLES FOR BEST PERFORMANCE
- DESIGNED FOR ENLARGED ANGULAR MOVEMENT
- THE SWAN NECK IS SECURED IN TWO PLACES
- PATENTED
HOW DOES IT WORK?
The 8XC MIG Extractor is specially made for Cobot and Semi-Automatic solutions. The 8XC is robust and the unique nozzle design combined with the ClearO2 W-series 100 and 200 provides the best results in taking away the fumes directly at the source. The specially designed nickel-plated contact tips are designed for a longer lifetime. The contact tips are available for all types of wire and sizes. The 8XC cobot works on the UR5e, UR10e and UR16e Universal Robots and other Cobot in the market.
UNIQUE NOZZLE DESIGN FOR OPTIMAL PERFORMANCE AND DURABILITY.
The nozzle design is unique to provide the best results. Openings, wall thickness and grip ribs are thoroughly developed for optimal operation and best performance.
WIRE FEED CONNECTORS
The 8XC MIG Extractor is as standard fitted with a EURO connector and like other Translas MIG lines available to fit any type of machine.
8XC COBOT MIG EXTRACTOR LINE
Technical Specification
Replacement Part
TECHNICAL DOCUMENT

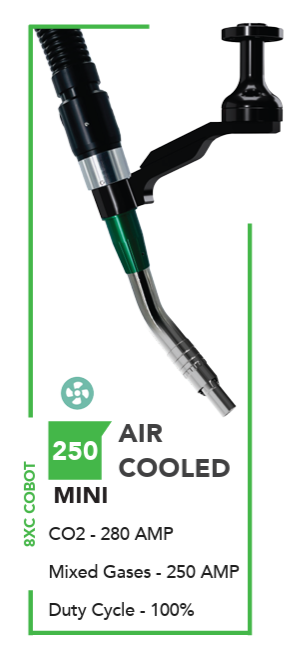

8XC MINI 250 COBOT
AIR COOLED
CO2 - 280 AMP
Mixed Gases - 250 AMP
Duty Cycle - 100%

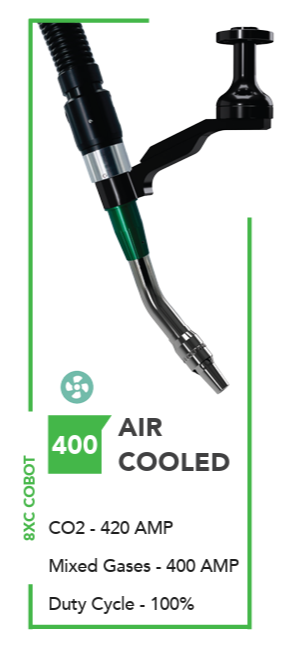

8XC COBOT MIG 400
AIR COOLED
CO2 - 420 AMP
Mixed Gases - 400 AMP
Duty Cycle - 100%

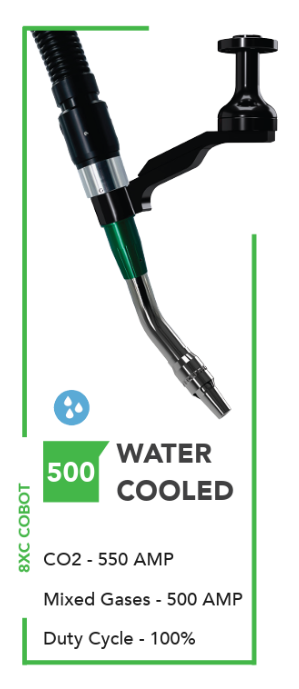

8XC COBOT MIG 500
WATER COOLED
CO2 - 550 AMP
Mixed Gases - 500 AMP
DUTY CYCLE: 100%
8XC MINI 250 COBOT
8XC COBOT MIG 400
8XC COBOT MIG 500
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| Part No. | Description | Pack Qty |
|---|---|---|
| 8XC6200205081 | 8XC MINI Cobot Extractor 250AMP 6ft (2mtr) air cooled - 22˚ neck | 1 |
| 8XC6200305081 | 8XC MINI Cobot Extractor 250AMP 10ft (3mtr) air cooled - 22˚ neck | 1 |
| 8XC6200405081 | 8XC MINI Cobot Extractor 250AMP 13ft (4mtr) air cooled - 22˚ neck | 1 |
| 8XC6400205081 | 8XC MINI Cobot Extractor 250AMP 6ft (2mtr) air cooled - 45˚ neck | 1 |
| 8XC6400305081 | 8XC MINICobot Extractor 250AMP 10ft (3mtr) air cooled - 45˚ neck | 1 |
| 8XC6400405081 | 8XC MINI Cobot Extractor 250AMP 13ft (4mtr) air cooled - 45˚ neck | 1 |
| 8XC6000205081 | 8XC MINI Cobot Extractor 250AMP 6ft (2mtr) air cooled - Straight neck | 1 |
| 8XC6000305081 | 8XC MINI Cobot Extractor 250AMP 10ft (3mtr) air cooled - Straight neck | 1 |
| 8XC6000405081 | 8XC MINI Cobot Extractor 250AMP 13ft (4mtr) air cooled Straight neck | 1 |
| Addtional options | ||
| 8XR**********90 | Execution with Push-button switch connected to springpins (item 9) | |
| 8XR**********91 | Execution with Push-button switch connected to external connector (item 9 & 24) |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 3937000 | Nozzle 8XC/8XE Extractor MINI 12mm | 5 |
| 3937001 | Nozzle 8XC/8XE Extractor MINI 14mm special | 5 | |
| 3937002 | Nozzle 8XC/8XE Extractor MINI 14mm | 5 | |
| 3937005 | Nozzle 8XC/8XE Extractor MINI 17mm special | 5 | |
| B | 399008 | Contact tip 8XC/8XE - 0.30 (0.8) | 25 |
| 399010 | Contact tip 8XC/8XE - 0.40 (1.0) | 25 | |
| 399012 | Contact tip 8XC/8XE - 0.45 (1.2) | 25 | |
| 3990102 | Contact tip 8XC/8XE - 0.40 (1.0) Alu | 25 | |
| 3990122 | Contact tip 8XC/8XE - 0.45 (1.2) Alu | 25 | |
| 3990091 | Contact Tip 8XC/8XE - 0.35 (0.9) CuCrZr | 25 | |
| 3990101 | Contact tip 8XC/8XE - 0.40 (1.0) CuCrZr | 25 | |
| 3990121 | Contact tip 8XC/8XE - 0.45 (1.2) CuCrZr | 25 | |
| C | 39327110 | 8XC/8XE Tip adapter | 10 |
| D | 301525 | Plastic coated liner blue 6ft (2mtr) - for 0.8mm wire | 1 |
| 301535 | Plastic coated liner blue 10ft (3mtr) - for 0.8mm wire | 1 | |
| 301545 | Plastic coated liner blue 13ft (4mtr) - for 0.8mm wire | 1 | |
| 302525 | Plastic coated liner red 6ft (2mtr) - for 1.0/1.2mm wire | 1 | |
| 302535 | Plastic coated liner red 10ft (3mtr) - for 1.0/1.2mm wire | 1 | |
| 302545 | Plastic coated liner red 13ft (4mtr) - for 1.0/1.2mm wire | 1 | |
| 304829 | Graphite liner black 6ft (2mtr) combiliner- for 1.0/1.2mm wire | 1 | |
| 304830 | Graphite liner black 10ft (3mtr) combiliner - for 1.0/1.2mm wire | 1 | |
| 304831 | Graphite liner black 13ft (4mtr) combiliner - for 1.0/1.2mm wire | 1 |
×
![]()

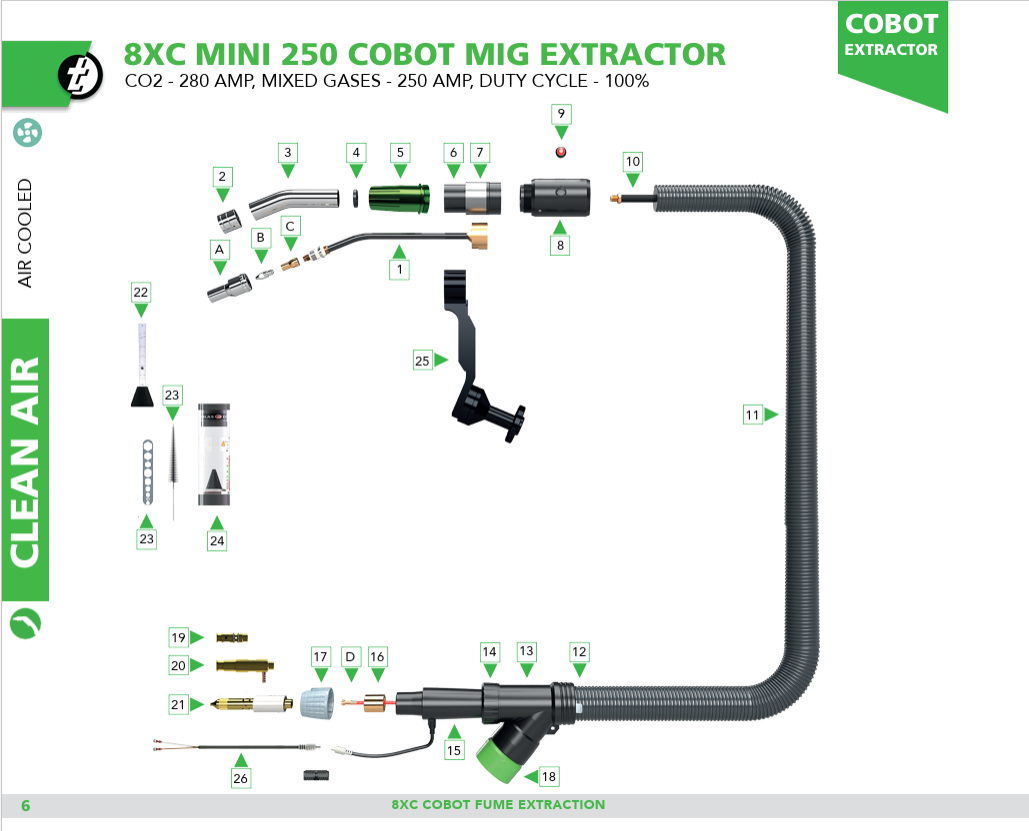

| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 3980122 | 8XC Swanneck MINI 22° | 1 |
| 3980145 | 8XC Swanneck MINI 45° | 1 | |
| 3980100 | 8XC Swanneck MINI straight | 1 | |
| 3950005 | PEEK ring for 8XC/8XE swanneck MINI (not shown) | 5 | |
| 2 | 3950100 | 8XC Nozzle holder MINI | 1 |
| 3 | 3980522 | 8XC Metal neck 22° | 1 |
| 39502453 | 8XC Metal neck 45° (partnumber 3980601 is needed) | 1 | |
| 3980601 | 8XC Metal neck connector for 45° neck | 1 | |
| 3980500 | 8XC Metal neck straight | 1 | |
| 4 | 3980490 | 8XC Centre ring for swanneck MINI | 1 |
| 5 | 39804411 | 8XC Adapter metal neck green | 1 |
| 6 | 3980400 | 8XC Torch body | 1 |
| 7 | 3980405 | 8XC Centre bush | 1 |
| 7 | 3980410 | 8XC Centre srew M4 (not shown - 3 pieces is needed) | 5 |
| 8 | 3980700 | 8XC Connection set | 1 |
| 9 | 3501575 | Push-button switch red | 2 |
| 10 | 259262XR | Cozx cable 8XC MINI 6ft (2mtr) | 1 |
| 259263XR | Cozx cable 8XC MINI 10ft (3mtr) | 1 | |
| 259264XR | Cozx cable 8XC MINI 13ft (4mtr) | 1 | |
| 11 | 3402022 | Fume cover hose 8XC/8XE 6ft (2mtr) | 1 |
| 3402032 | Fume cover hose 8XC/8XE 10ft (3mtr) | 1 | |
| 3402042 | Fume cover hose 8XC/8XE 13ft (4mtr) | 1 | |
| 12 | 398030 | Hose connection | 1 |
| 13 | 398100 | Housing (Y-shape) for fume extraction hose | 1 |
| 14 | 398015 | Connection ring | 1 |
| 15 | 398010 | Housing set for central connector | 1 |
| 16 | 3059001 | Central connector air cooled USA | 1 |
| 17 | 398200 | Adaptor nut USA | 2 |
| 18 | 398110 | Hose adapter | 10 |
| 19 | 3059100 | Tweco tail | 1 |
| 20 | 3059200S | Lincoln tail complete with gashose | 1 |
| 21 | 3059150 | Miller tail | 1 |
| 22 | 406050 | Gasflow meter | 1 |
| 23 | 371208 | Tool set (brush and multitool) | 1 |
| 24 | 371350 | Airflow meter 8XE/8XC Extractor MINI | 1 |
| 25 | 3991022 | 8XC Torchholder set 22° | 1 |
| 26 | Please ask | Push Button connection (also in combination with item 9) | 1 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| Part No. | Description | Pack Qty |
|---|---|---|
| 8XC7228205081 | 8XC Cobot MIG Extractor 400 AMP 6ft (2mtr) air cooled - 22˚ neck | 1 |
| 8XC7228305081 | 8XC Cobot MIG Extractor 400AMP 10ft (3mtr) air cooled - 22˚ neck | 1 |
| 8XC7228405081 | 8XC Cobot MIG Extractor 400AMP 13ft (4mtr) air cooled - 22˚ neck | 1 |
| 8XC7428205081 | 8XC Cobot MIG Extractor 400AMP 6ft (2mtr) air cooled - 45˚ neck | 1 |
| 8XC7428305081 | 8XC Cobot MIG Extractor 400AMP 10ft (3mtr) air cooled - 45˚ neck | 1 |
| 8XC7428405081 | 8XC Cobot MIG Extractor A400AMP 13ft (4mtr) air cooled - 45˚ neck | 1 |
| 8XC7028205081 | 8XC Cobot MIG Extractor 400AMP 6ft (2mtr) air cooled - St. neck | 1 |
| 8XC7028305081 | 8XC Cobot MIG Extractor 400AMP 10ft (3mtr) air cooled - St. neck | 1 |
| 8XC7028405081 | 8XC Cobot MIG Extractor 400AMP13ft (4mtr) air cooled - St. neck | 1 |
| 8XC**********90 | Execution with Push-button switch connected to springpins (item 9) | |
| 8XC**********91 | Execution with Push-button switch connected to external connector (item 9 & 29) |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 3937041 | Nozzle 8XC/8XE Extractor .55 (14mm) special | 5 |
| 3937045 | Nozzle 8XC/8XE Extractor .67 (17mm) special | 5 | |
| B | 399010 | Contact Tip 8XC/8XE - 0.40 (1.0) | 25 |
| 399012 | Contact Tip 8XC/8XE - 0.45 (1.2) | 25 | |
| 399016 | Contact Tip 8XC/8XE - 0.62 (1.6) | 25 | |
| 3990102 | Contact Tip 8XC/8XE - 0.40 (1.0) Alu | 25 | |
| 3990122 | Contact Tip 8XC/8XE - 0.45 (1.2) Alu | 25 | |
| 3990091 | Contact Tip 8XC/8XE - 0.35 (0.9) CuCrZr | 25 | |
| 3990101 | Contact Tip 8XC/8XE - 0.40 (1.0) CuCrZr | 25 | |
| 3990121 | Contact Tip 8XC/8XE - 0.45 (1.2) CuCrZr | 25 | |
| 3990161 | Contact Tip 8XC/8XE - 0.62 (1.6) CuCrZr | 25 | |
| 3990201 | Contact Tip 8XC/8XE - 0.78 (2.0) CuCrZr | 25 | |
| 3990241 | Contact Tip 8XC/8XE - 0.95 (2.4) CuCrZr | 25 | |
| C | 39327310 | 8XC/8XE Tip adapter | 10 |
| D | 303792 | Plastic coated liner black 6ft (2m) - for .040 to .045 wire | 1 |
| 303793 | Plastic coated liner black 10ft (3m) - for .040 to .045 wire | 1 | |
| 303794 | Plastic coated liner black 13ft (4m) - for .040 to .045 wire | 1 | |
| 303762 | Plastic coated liner grey 6ft (2m) - for .062 wire | 1 | |
| 303763 | Plastic coated liner grey 10ft (3m) - for .062 wire | 1 | |
| 303764 | Plastic coated liner grey 13ft (4m) - for .062 wire | 1 | |
| 304829 | Graphite liner black 6ft (2m) combiliner - for .030 to .045 wire | 1 | |
| 304830 | Graphite liner black 10ft (3m) combiliner - for .030 to .045 wire | 1 | |
| 304831 | Graphite liner black 13ft (4m) combiliner - for .030 to .045 wire | 1 | |
| 3048341 | Graphite liner black 6ft (2m) combiliner - for .062 wire | 1 | |
| 3048351 | Graphite liner black 10ft (3m) combiliner - for .062 wire | 1 | |
| 3048361 | Graphite liner black 13ft (4m) combiliner - for .062 wire | 1 |
×
![]()

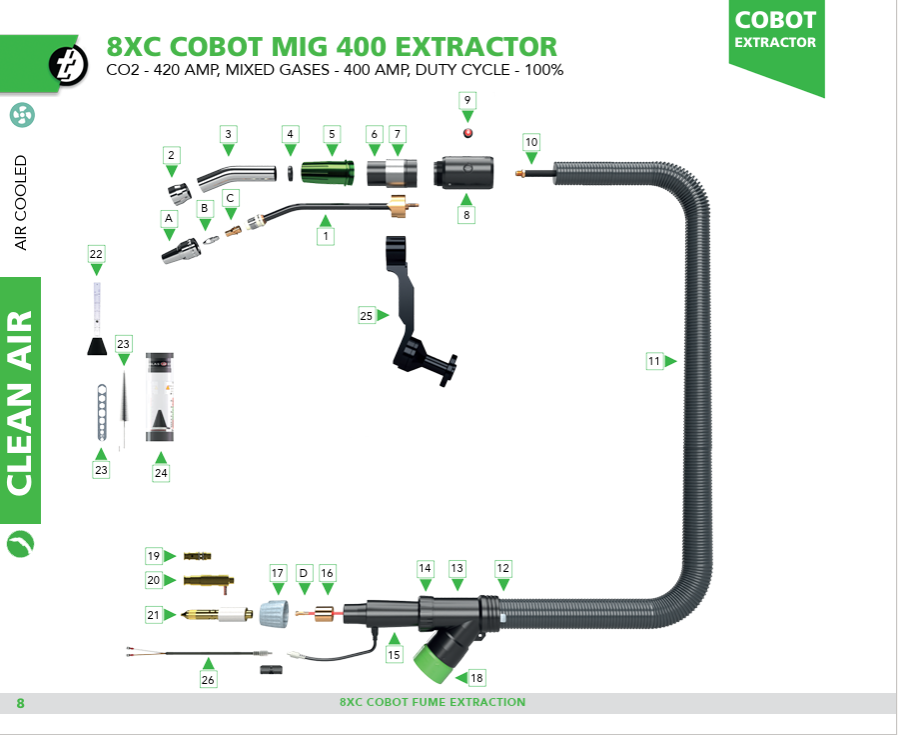

| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 3980322 | 8XC Swanneck 22° | 1 |
| 3980345 | 8XC Swanneck 45° | 1 | |
| 3980300 | 8XC Swanneck straight | 1 | |
| 3950005 | PEEK ring for 8XR/8XE swanneck (not shown) | 5 | |
| 2 | 3950200 | 8XC Nozzle holder | 1 |
| 3 | 3980522 | 8XC Metal neck 22° | 1 |
| 39502453 | 8XC Metal neck 45° (partnumber 3980601 is needed) | 1 | |
| 3980601 | 8XC Metal neck connector for 45° neck | 1 | |
| 3980500 | 8XC Metal neck straight | 1 | |
| 4 | 3980480 | 8XC Centre ring for swanneck | 1 |
| 5 | 39804411 | 8XC Adapter metal neck green | 1 |
| 6 | 3980400 | 8XC Torch body | 1 |
| 7 | 3980405 | 8XC Centre bush | 1 |
| 3980410 | 8XC Centre srew M4 (not shown - 3 pieces is needed) | 5 | |
| 8 | 3980700 | 8XC Connection set | 1 |
| 9 | 260019 | Push-button switch red | 2 |
| 10 | 259462XR | Cozx cable 8XC 6.6ft (2mtr) | 1 |
| 259463XR | Cozx cable 8XC 10.0ft (3mtr) | 1 | |
| 259464XR | Cozx cable 8XC 13.1ft (4mtr) | 1 | |
| 11 | 3402022 | Fume cover hose 8XC/8XE 6ft (2mtr) | 1 |
| 3402032 | Fume cover hose 8XC/8XE 10ft (3mtr) | 1 | |
| 3402042 | Fume cover hose 8XC/8XE 13ft (4mtr) | 1 | |
| 12 | 398030 | Hose connection | 1 |
| 13 | 398100 | Housing (Y-shape) for fume extraction hose | 1 |
| 14 | 398015 | Connection ring | 1 |
| 15 | 398010 | Housing set for central connector | 1 |
| 16 | 30590012 | Central connector air cooled USA | 1 |
| 17 | 398200 | Adaptor nut USA | 2 |
| 18 | 398110 | Hose adapter | 10 |
| 19 | 3059100 | Tweco tail | 1 |
| 20 | 3059200S | Lincoln tail complete with gashose | 1 |
| 21 | 3059150 | Miller tail | 1 |
| 22 | 406050 | Gasflow meter | 1 |
| 23 | 371208 | Tool set (brush and multitool) | 1 |
| 24 | 371300 | Airflow meter 8XE/8XC Extractor | 1 |
| 25 | 3991022 | 8XC Torchholder set 22° | 1 |
| 26 | Please ask | Push Button connection (also in combination with item 9) | 2 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| Part No. | Description | Pack Qty |
|---|---|---|
| 8XC9260205081 | 8XC Cobot MIG Extractor 500AMP 6ft (2m) water cooled - 22˚ neck | 1 |
| 8XC9260305081 | 8XC Cobot MIG Extractor 500AMP10 (3m) water cooled - 22˚ neck | 1 |
| 8XC9260405081 | 8XC Cobot MIG Extractor 500AMP 13ft (4m) water cooled - 22˚ neck | 1 |
| 8XC9460205081 | 8XC Cobot MIG Extractor 500AMP 6ft (2m) water cooled - 45˚ neck | 1 |
| 8XC9460305081 | 8XC Cobot MIG Extractor 500AMP 10ft (3m) water cooled - 45˚ neck | 1 |
| 8XC9460405081 | 8XC Cobot MIG Extractor 500AMP 13ft (4m) water cooled - 45˚ neck | 1 |
| 8XC9060205081 | 8XC Cobot MIG Extractor 500AMP 6ft (2m) water cooled - St. neck | 1 |
| 8XC9060305081 | 8XC Cobot MIG Extractor 500AMP 10ft (3m) water cooled - St. neck | 1 |
| 8XC9060405081 | 8XC Cobot MIG Extractor 500AMP 13ft (4m) water cooled - St. neck | 1 |
| 8XC**********90 | Execution with Push-button switch connected to springpins (item 9) | |
| 8XC**********91 | Execution with Push-button switch connected to external connector(item 9 & 29) |
×
![]()

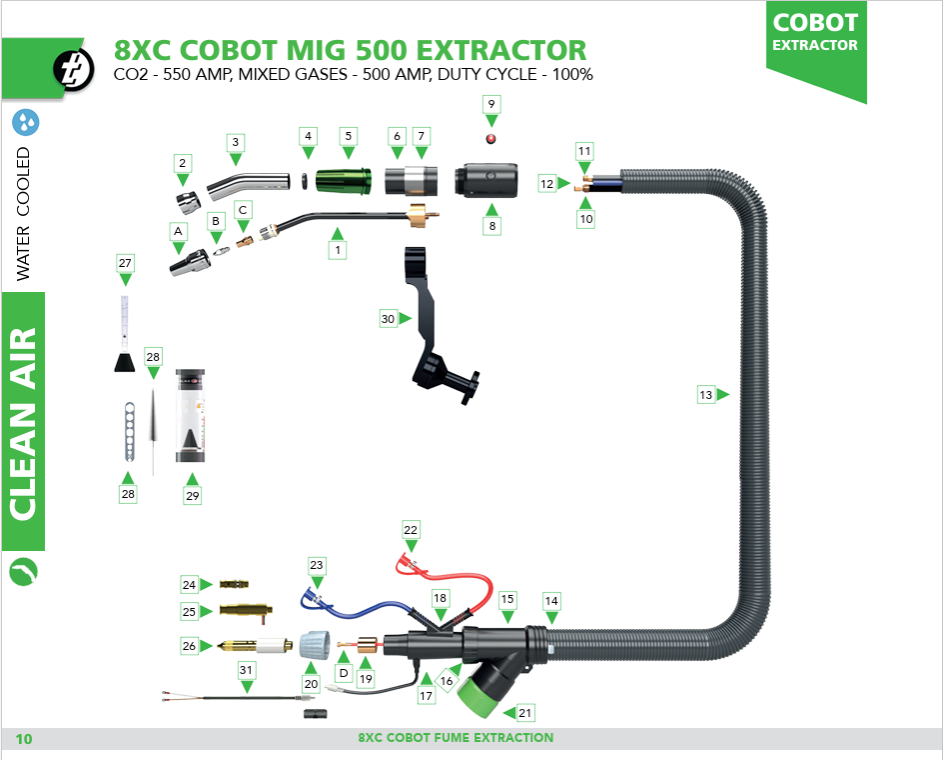

| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 3937041 | Nozzle 8XC/8XE Extractor 14mm special | 5 |
| 3937045 | Nozzle 8XC/8XE Extractor 17mm special | 5 | |
| B | 399008 | Contact tip 8XC/8XE - 0.30 (0,8) | 25 |
| 399010 | Contact tip 8XC/8XE - 0.40 (1,0) | 25 | |
| 399012 | Contact tip 8XC/8XE - 0.45 (1,2) | 25 | |
| 399016 | Contact tip 8XC/8XE - 0.62 (1,6) | 25 | |
| 3990102 | Contact tip 8XC/8XE - 0.40 (1,0) Alu | 25 | |
| 3990122 | Contact tip 8XC/8XE - 0.45 (1,2) Alu | 25 | |
| 3990091 | Contact tip 8XC/8XE - 0.35 (0.9) CuCrZr | 25 | |
| 3990101 | Contact tip 8XC/8XE - 0.40 (1,0) CuCrZ | 25 | |
| 3990121 | Contact tip 8XC/8XE - 0.45 (1,2) CuCrZr | 25 | |
| 3990161 | Contact tip 8XC/8XE - 0.62 (1,6) CuCrZr | 25 | |
| C | 39327210 | 8XC/8XE Tip adapter | 10 |
| D | 301525 | Plastic coated liner blue 6ft (2mtr) - for 0.8mm wire | 1 |
| 301535 | Plastic coated liner blue 10ft (3mtr) - for 0.8mm wire | 1 | |
| 301545 | Plastic coated liner blue 13ft (4mtr) - for 0.8mm wire | 1 | |
| 302525 | Plastic coated liner red 6ft (2mtr) - for 1.0/1.2mm wire | 1 | |
| 302535 | Plastic coated liner red 10ft (3mtr) - for 1.0/1.2mm wire | 1 | |
| 302545 | Plastic coated liner red 13ft (4mtr) - for 1.0/1.2mm wire | 1 | |
| 303625 | Plastic coated liner yellow 6ft (2mtr) - for 1.6mm wire | 1 | |
| 303635 | Plastic coated liner yellow 10ft (3mtr) - for 1.6mm wire | 1 | |
| 303645 | Plastic coated liner yellow 13ft (4mtr) - for 1.6mm wire | 1 | |
| 304829 | Graphite liner black 6ft (2mtr) combiliner - for 1.0/1,2mm wire | 1 | |
| 304830 | Graphite liner black 10ft (3mtr) combiliner - for 1.0/1,2mm wire | 1 | |
| 304831 | Graphite liner black 13ft (4mtr) combiliner - for 1.0/1,2mm wire | 1 | |
| 3048341 | Graphite liner black 6ft (2mtr) combiliner - for 1.6mm wire | 1 | |
| 3048351 | Graphite liner black 10ft (3mtr) combiliner - for 1.6mm wire | 1 | |
| 3048361 | Graphite liner black 13ft (4mtr) combiliner - for 1.6mm wire | 1 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 3980022 | 8XC Swanneck water cooled 22° | 1 |
| 3980045 | 8XC Swanneck water cooled 45° | 1 | |
| 3980000 | 8XC Swanneck water cooled straight | 1 | |
| 3950205 | PEEK ring for 8XC/8XE swanneck air/water (not shown) | 5 | |
| 2 | 3950200 | Nozzle holder for 8XC/8XE Nozzle | 1 |
| 3 | 3980522 | 8XC Metal neck 22° | 1 |
| 39502453 | 8XC Metal neck 45° (partnumber 3980601 is needed) | 1 | |
| 3980601 | 8XC Metal neck connector for 45° neck | 1 | |
| 3980500 | 8XC Metal neck straight | 1 | |
| 4 | 3980480 | 8XC Centre ring for swanneck | 1 |
| 5 | 39804411 | 8XC Adapter metal neck green | 1 |
| 6 | 3980400 | 8XC Torch body | 1 |
| 7 | 3980405 | 8XC Centre bush | 1 |
| 3980410 | 8XC Centre srew M4 (not shown - 3 pieces is needed) | 5 | |
| 8 | 3980700 | 8XC Connection set | 1 |
| 9 | 3501575 | Push-button switch red | 2 |
| 10 | 258512X8R | Power/water cable 8XC/8XE 6.6ft (2mtr) | 1 |
| 258513X8R | Power/water cable 8XC/8XE 10.0ft (3mtr) | 1 | |
| 258514X8R | Power/water cable 8XC/8XE 13.1ft (4mtr) | 1 | |
| 11 | 2585312XR | Outer liner 8XC/8XE 6.6ft (2mtr) | 1 |
| 2585313XR | Outer liner 8XC/8XE 10.0ft (3mtr) | 1 | |
| 2585314XR | Outer liner 8XC/8XE 13.1ft (4mtr) | 1 | |
| 12 | 258535 | Water inlet hose 5x8mm blue per mtr | 100 |
| 258566 | Water outlet hose 5x8mm red per mtr | 100 | |
| 13 | 3402022 | Fume cover hose 8XC/8XE 36-44mm 6ft (2mtr) | 1 |
| 3402032 | Fume cover hose 8XC/8XE 36-44mm 10ft (3mtr) | 1 | |
| 3402042 | Fume cover hose 8XC/8XE 36-44mm 13ft (4mtr) | 1 | |
| 14 | 398030 | Hose connection | 1 |
| 15 | 398100 | Housing (Y-shape) for fume extraction hose | 1 |
| 16 | 398015 | Connection ring | 1 |
| 17 | 398010 | Housing set for central connector | 1 |
| 18 | 350881 | Water hose guide | 1 |
| 19 | 3059002 | Central connector water cooled USA | 1 |
| 20 | 398200 | Adaptor nut USA | 2 |
| 21 | 398110 | LHose adapter | 1 |
| 22 | 258701 | Waterstop red | 10 |
| 23 | 258702 | Waterstop blue | 10 |
| 24 | 3059100 | Tweco tail | 1 |
| 25 | 3059200S | Lincoln tail complete with gashose | 1 |
| 26 | 3059150 | Miller tail | 1 |
| 27 | 406050 | Gasflow meter | 1 |
| 28 | 371208 | Tool set (brush and multitool) | 1 |
| 29 | 371300 | Airflow meter 8XE /8XC Extractor | 1 |
| 30 | 3991022 | 8XR Torchholder set 22° | 1 |
| 31 | Please ask | Push Button connection (also in combination with item 10) | 1 |
