8TE TIG FUME EXTRACTOR GUNS
8TE TIG FUME EXTRACTOR GUNS
8TE TIG FUME EXTRACTOR GUNS
DID YOU KNOW?
Stainless steel and aluminum welding produces the most toxic particulates that are found in the harmful welding fumes because of hexavalent chromium and manganese
VARIOUS SWITCH MODULES AVAILABLE
Positioned at approximately 5 degrees, the switch module eliminates any tension in the fingers and minimizes the risk of cramps due to daily repetitive movements
EXTREMELY FLEXIBLE HOSE ON FIRST 3’ (METRE)
Stainless steel and aluminum welding produces the most toxic particulates that are found in the harmful welding fumes because of hexavalent chromium and manganese
8TE-17 & 8TE-30 TIG FUME EXTRACTORS
Our TIG Extractors protect the welders and other workers in the factory from harmful fumes and metals like aluminum, chromium, iron, manganese, and nickel which are released during the welding process.
SOME CONVERNIENT HANDLE AS REGULAR – 8XT GUN
The 8TE TIG Extractor handle has a unique ergonomic shape desig ned to suit the shape of the welder’s hand, fitting perfectly between the thumb and index fingers. The grip is made out of a durable but soft 2K TPE rubber. Both the ergonomic shape and the grip material contribute to the excellent stability of the gun during the welding process.
THE CLEAR O2 T100 & T200 PORTABLE
The ClearO2 T100 and T200 portable extraction units offered by Translas are specially engineered to work with the 8TETIG Extractor to deliver the best results – up to 95% extraction of welding harmful particulate directly at the source.
8TE TIG FUME EXTRACTION LINE
Technical Specification
Replacement Part
Technical Document
8TE 17 TIG
AIR COOLED
DC – 140 AMP
AC/DC – 100 AMP
Duty Cycle – 35%
8TE 30 TIG
WATER COOLED
2 DC – 320 AMP
AC/DC – 230 AMP
Duty Cycle – 100%
8TE 35 TIG
WATER COOLED
DC – 320 AMP
AC/DC – 230 AMP
DUTY CYCLE: 100%

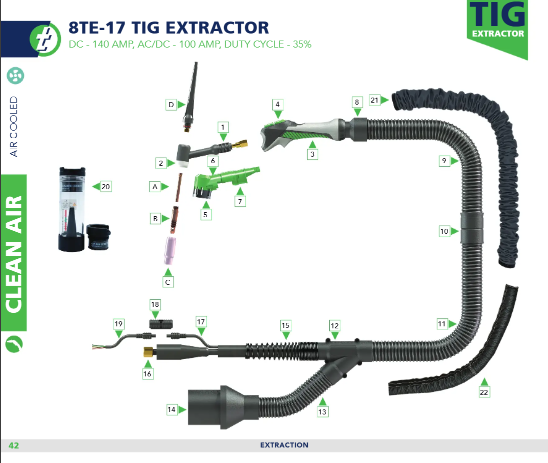

8TE-17

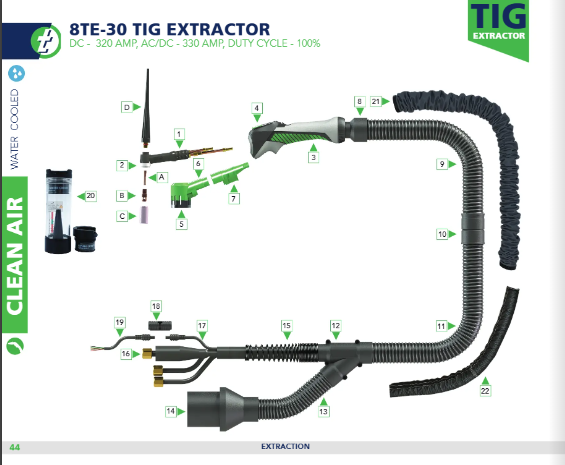

8TE-30
8TE-35
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| Part No. | Description | Pack Qty |
|---|---|---|
| 8TE20010504350 | 8TE-17 Tig Extractor 4mtr 10-25mm + 1/4’G | 1 |
| 8TE20010508350 | 8TE-17 Tig Extractor 8mtr 10-25mm + 1/4’G | 1 |
| 8TE20010504370 | 8TE-17 Tig Extractor 4mtr 35-50mm + 1/4’G | 1 |
| 8TE20010508370 | 8TE-17 Tig Extractor 8mtr 35-50mm + 1/4’G | 1 |
| 8TE20010504340 | 8TE-17 Tig Extractor 4mtr CA Fronius 35-50mm | 1 |
| 8TE20010508340 | 8TE-17 Tig Extractor 8mtr CA Fronius 35-50mm | 1 |
| 8TE20010504000 | 8TE-17 Tig Extractor 4mtr M12x1 | 1 |
| 8TE20010508000 | 8TE-17 Tig Extractor 8mtr M12x1 | 1 |
| 8TE20010504210 | 8TE-17 Tig Extractor 4mtr 1/4’G | 1 |
| 8TE20010508210 | 8TE-17 Tig Extractor 8mtr 1/4’G | 1 |
| 8TE20010504220 | 8TE-17 Tig Extractor 4mtr 3/8’G | 1 |
| 8TE20010508220 | 8TE-17 Tig Extractor 8mtr 3/8’G | 1 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 500664 | 10N22 Collet 1.0mm | 5 |
| 500666 | 10N23 Collet 1.6mm | 5 | |
| 500668 | 70062 Collet 2.0mm | 5 | |
| 500670 | 10N24 Collet 2.4mm | 5 | |
| 500674 | 10N25 Collet 3.2mm | 5 | |
| 500676 | 54N20 Collet 4.0mm | 5 | |
| B | 500764 | 10N30 Collet body 1.0mm | 5 |
| 500766 | 10N31 Collet body 1.6mm | 5 | |
| 500768 | 70064 Collet body 2.0mm | 5 | |
| 500770 | 10N32 Collet body 2.4mm | 5 | |
| 500774 | 10N28 Collet body 3.2mm | 5 | |
| 500776 | 40648 Collet body 4.0mm | 5 | |
| C | 500520 | 10N50 Ceramic cup 6.4mm | 10 |
| 500522 | 10N49 Ceramic cup 7.9mm | 10 | |
| 500524 | 10N48 Ceramic cup 9.5mm | 10 | |
| 500526 | 10N47 Ceramic cup 11.1mm | 10 | |
| 500528 | 10N46 Ceramic cup 12.7mm | 10 | |
| 500530 | 10N45 Ceramic cup 16.0mm | 10 | |
| 500532 | 10N44 Ceramic cup 19.0mm | 10 | |
| D | 500346 | 57Y02 Back cap long | 5 |
| 500347 | 300M Back cap medium | 5 |
×
![]()
| 1 | 522030 | Torch body air cooled | 1 |
| 2 | 500442 | 10G6 Heat shield | 5 |
| 3 | 529967 | Handle grip complete with 1-button switch | 1 |
| 550150 | Inside handle strap (Not shown) | 1 | |
| 550169 | Inside hose strap (Not shown) | 2 | |
| 4 | 505918 | Switch module green 1-button complete | 1 |
| For other switch options see torch pages 52 | |||
| 5 | 551010 | Heat shield aluminium | 1 |
| 6 | 550532 | Suction head | 1 |
| 7 | 550102 | Touchpad adaptor | 1 |
| 8 | 550150 | Ball-and-socket joint | 1 |
| 9 | 550400 | Suction hose front 1m black | 1 |
| 10 | 550102 | Connection part for 25mm hose (When torch is 4mtr) | 1 |
| 550102 | Connection part for 30mm hose (When torch is 8mtr) | 1 | |
| 11 | 240102 | Suction hose 25mm black (4mtr) (When torch is 4mtr) | 1MTR |
| 240305 | Suction hose 30mm black (8mtr) (When torch is 8mtr) | 1MTR | |
| 12 | 550010 | Y-Piece set | 1 |
| 550212 | Inside strap to block suction smoke (Not shown) | 1 | |
| 550250 | Adaptor for 30mm hose on Y-Piece (When torch is 8mtr) | 1 | |
| 13 | 240102 | Suction hose 25mm black (4mtr) | 1MTR |
| 14 | 551008 | Adaptor Suction hose 25mm → 30mm | 1 |
| 550108 | Adaptor Suction hose 25mm → 38mm | 1 | |
| 15 | 550215 | Spring 27mm for Y-Piece | 1 |
| 16 | Power/Water cable (No contact shaft is depending on machine connection) | ||
| 17 | 206550 | Switch cable 4mm (QuickConnect) | 1 |
| 18 | 206552 | Switch cable 6mm (QuickConnect) | 1 |
| 19 | 206545 | Locking clip (QuickConnect) | 1 |
| 20 | 206559 | Switch cable end without plug (QuickConnect) | 1 |
| 21 | 555000 | Airflow meter Extractor | 1 |
| 22 | 443252 | Hose Cover (Optional) | 1 |
| 23 | 550004 | Leather Cover for start switch (Optional) | 1 |
| 24 | 260007 | Leather Cover for start switch (Optional) | 1 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| Part No. | Description | Pack Qty |
|---|---|---|
| 8TE60014704650 | 8TE-30 Tig Extractor 4mtr 35-50mm + tules + 1/4’G | 1 |
| 8TE60014708650 | 8TE-30 Tig Extractor 8mtr 35-50mm + tules + 1/4’G | 1 |
| 8TE60014704990 | 8TE-30 Tig Extractor 4mtr CA Fronius 35-50mm + tules | 1 |
| 8TE60014708990 | 8TE-30 Tig Extractor 8mtr CA Fronius 35-50mm + tules | 1 |
| 8TE60014704600 | 8TE-30 Tig Extractor 4mtr M12x1 + 3/8’G + 1/4’G | 1 |
| 8TE60014708600 | 8TE-30 Tig Extractor 8mtr M12x1 + 3/8’G + 1/4’G | 1 |
| 8TE60014704800 | 8TE-30 Tig Extractor 4mtr 3/8’G + 3/8’G + 1/4’G | 1 |
| 8TE60014708800 | 8TE-30 Tig Extractor 8mtr 3/8’G + 3/8’G + 1/4’G | 1 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 500650 | 13N20 Collet 0,5mm | 5 |
| 500652 | 13N21 Collet 1,0mm | 5 | |
| 500654 | 13N22 Collet 1,6mm | 5 | |
| 500656 | 70066 Collet 2,0mm | 5 | |
| 500658 | 13N23 Collet 2,4mm | 5 | |
| 500660 | 13N24 Collet 3,2mm | 5 | |
| B | 500750 | 13N25 Collet body 0,5mm | 5 |
| 500752 | 13N26 Collet body 1,0mm | 5 | |
| 500754 | 13N27 Collet body 1,6mm | 5 | |
| 500756 | 70067 Collet body 2,0mm | 5 | |
| 500758 | 13N28 Collet body 2,4mm | 5 | |
| 500760 | 13N29 Collet body 3,2mm | 5 | |
| C | 500500 | 13N08 Ceramic cup 6,4mm Gr. 4 | 10 |
| 500502 | 13N09 Ceramic cup 7,9mm Gr. 5 | 10 | |
| 500504 | 13N10 Ceramic cup 9,5mm Gr. 6 | 10 | |
| 500506 | 13N11 Ceramic cup 11,1mm Gr. 7 | 10 | |
| 500508 | 13N12 Ceramic cup 12,7mm Gr. 8 | 10 | |
| 500510 | 13N13 Ceramic cup 15,9mm Gr. 10 | 10 | |
| D | 500344 | 41V35 Back cap medium | 5 |
| 500340 | 41V24 Back cap long (standard) | 5 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 520700 | Torch body water cooled | 1 |
| 2 | 500400 | 598882 Heat shield | 5 |
| 3 | 8X9987 | Handle green complete with 1-button switch | 1 |
| 580150 | Inside handle stop (Not shown) | 1 | |
| 580160 | Inside hose stop (Not shown) | 2 | |
| 4 | 8X9518 | Switch module green 1-button complete | 1 |
| For other switch options we refer to page 49 | |||
| 5 | 581000 | Heat shield aluminium | 1 |
| 6 | 5803002 | Suction head | 1 |
| 7 | 5801002 | Torchbody adaptor | 1 |
| 8 | 581050 | Ball-and-socket joint | 1 |
| 9 | 580400 | Suction hose front 1 mtr black | 1 |
| 10 | 5810602 | Connection part for 25mm hose (When torch is 4mtr) | 1 |
| 5810622 | Connection part for 30mm hose (When torch is 8mtr) | 1 | |
| 11 | 340102 | Suction hose 25mm black p/mtr (When torch is 4mtr) | 1mtr |
| 340505 | Suction hose 30mm black p/mtr (When torch is 8mtr) | 1mtr | |
| 12 | 5802002 | Y-Piece set | 1 |
| 5802202 | Inside stop to block suction smoke (Not shown) | 1 | |
| 580250 | Adaptor to fit 30mm hose on Y-Piece (When torch is 8mtr) | 1 | |
| 13 | 340102 | Suction hose 25mm black p/mtr | 1mtr |
| 14 | 581068 | Adaptor Suction hose 25mm → 56mm | 1 |
| 581069 | Adaptor Suction hose 25mm → 38mm | 1 | |
| 15 | 580215 | Spring 27mm for Y-Piece | 1 |
| 16 | Power/Water cable On request as this is depending on machine connection | 1 | |
| 17 | 306550 | Switch cable 4mtr (QuickConnect) | 1 |
| 306552 | Switch cable 8mtr (QuickConnect) | 1 | |
| 18 | 306545 | Locking clip (QuickConnect) | 1 |
| 19 | 306559 | Switch cable end without plug (QuickConnect) | 1 |
| 20 | 585000 | Airflow meter Extractor | 1 |
| 21 | 442352 | Hose Cover (Optional) | 1 |
| 22 | 582004 | Leather Cover for 4mtr torch (optional) | 1 |
| 260027 | Leather Cover for 8mtr torch (optional) | 1 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| Part No. | Description | Pack Qty |
|---|---|---|
| 8TE65014704650 | 8TE-35 Tig Extractor 4mtr 35-50mm?+tulest1/4’G | 1 |
| 8TE65014708650 | 8TE-35 Tig Extractor 8mtr 35-50mm2+tules+ 1/4’G | 1 |
| 8TE65014704990 | 8TE-35 Tig Extractor 4mtr CA Fronius 35-50mm2+tules | 1 |
| 8TE65014708990 | 8TE-35 Tig Extractor 8mtr CA Fronius 35-50mm2+tules | 1 |
| 8TE65014704600 | 8TE-35 Tig Extractor 4mtr M12x1+3/8’G+1/4’G | 1 |
| 8TE65014708600 | 8TE-35 Tig Extractor 8mtr M12x1+3/8’G+1/4’G | 1 |
| 8TE65014704800 | 8TE-35 Tig Extractor 4mtr 3/8’G+3/8’G+1/4’G | 1 |
| 8TE65014708800 | 8TE-35 Tig Extractor 8mtr 3/8’G+3/8’G+1/4’G | 1 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 500664 | 10N22 Collet 1.0mm | 5 |
| 500666 | 10N23 Collet 1.6mm | 5 | |
| 500668 | 70062 Collet 2.0mm | 5 | |
| 500670 | 10N24 Collet 2,4mm | 5 | |
| 500674 | 10N25 Collet 3.2mm | 5 | |
| 500676 | 54N20 Collet 4.0mm | 5 | |
| B | 500764 | 10N30 Collet body 1.0mm | 5 |
| 500766 | 10N31 Collet body 1.6mm | 5 | |
| 500768 | 70064 Collet body 2.0mm | 5 | |
| 500770 | 10N32 Collet body 2,4mm | 5 | |
| 500774 | 10N28 Collet body 3.2mm | 5 | |
| 500776 | 406488 Collet body 4.0mm | 5 | |
| C | 500520 | 10N50 Ceramic cup 6.4mm | 10 |
| 500522 | 10N49 Ceramic cup 7.9mm | 10 | |
| 500524 | 10N48 Ceramic cup 9,5mm | 10 | |
| 500526 | 10N47 Ceramic cup 11.1mm | 10 | |
| 500528 | 10N46 Ceramic cup 12.7 mm | 10 | |
| 500530 | 10N45 Ceramic cup 16.0mm | 10 | |
| 500532 | 10N44 Ceramic cup 19.0mm | 10 | |
| D | 500346 | 57Y02 Back cap long | 5 |
| 500347 | 300M Back cap medium | 5 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 520701 | Torch body water cooled | 1 |
| 2 | 500402 | 18CG Heat shield | 5 |
| 3 | 8X9987 | Handle green complete with 1-button switch | 1 |
| 580150 | Inside handle stop (Not shown) | 1 | |
| 580160 | Inside hose stop (Not shown) | 2 | |
| 4 | 8X9518 | Switch module green 1-button complete | 1 |
| For other switch options we refer to page 49 | 1 | ||
| 5 | 581010 | Heat shield aluminium | 1 |
| 6 | 5804102 | Suction head | 1 |
| 7 | 5801002 | Torchbody adaptor | 1 |
| 8 | 581050 | Ball-and-socket joint | 1 |
| 9 | 580400 | Suction hose front 1 mtr black | 1 |
| 10 | 5810602 | Connection part for 25mm hose (When torch is 4mtr) | 1 |
| 5810622 | Connection part for 30mm hose (When torch is 8mtr) | 1 | |
| 11 | 340102 | Suction hose 25mm black p/mtr (When torch is 4mtr) | 1mtr |
| 340505 | Suction hose 30mm black p/mtr (When torch is 8mtr) | 1mtr | |
| 12 | 5802002 | Y-Piece set | 1 |
| 5802202 | Inside stop to block suction smoke (Not shown) | 1 | |
| 580250 | Adaptor to fit 30mm hose on Y-Piece (When torch is 8mtr) | 1 | |
| 13 | 340102 | Suction hose 25mm black p/mtr | 1mtr |
| 14 | 581068 | Adaptor Suction hose 25mm → 56mm | 1 |
| 581069 | Adaptor Suction hose 25mm → 38mm | 1 | |
| 15 | 580215 | Spring 27mm for Y-Piece | 1 |
| 16 | Power/Water cable On request as this is depending on machine connection | 1 | |
| 17 | 306550 | Switch cable 4mtr (QuickConnect) | 1 |
| 306552 | Switch cable 8mtr (QuickConnect) | 1 | |
| 18 | 306545 | Locking clip (QuickConnect) | 1 |
| 19 | 306559 | Switch cable end without plug (QuickConnect) | 1 |
| 20 | 585000 | Airflow meter Extractor | 1 |
| 21 | 442352 | Hose Cover (Optional) | 1 |
| 22 | 582004 | Leather Cover for 4mtr torch (optional) | 1 |
| 260027 | Leather Cover for 8mtr torch (optional) | 1 |
Technical Specification
Replacement Part
Technical Document
8TE 17 TIG
AIR COOLED
DC – 140 AMP
AC/DC – 100 AMP
Duty Cycle – 35%
8TE 30 TIG
WATER COOLED
DC – 320 AMP
AC/DC – 230 AMP
Duty Cycle – 100%
8TE 35 TIG
WATER COOLED
DC – 320 AMP
AC/DC – 230 AMP
DUTY CYCLE: 100%
8TE-17
8TE-30
8TE-35
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| Part No. | Description | Pack Qty |
|---|---|---|
| 8TE20010504350 | 8TE-17 Tig Extractor 4mtr 10-25mm + 1/4'G | 1 |
| 8TE20010508350 | 8TE-17 Tig Extractor 8mtr 10-25mm + 1/4'G | 1 |
| 8TE20010504370 | 8TE-17 Tig Extractor 4mtr 35-50mm + 1/4'G | 1 |
| 8TE20010508370 | 8TE-17 Tig Extractor 8mtr 35-50mm + 1/4'G | 1 |
| 8TE20010504340 | 8TE-17 Tig Extractor 4mtr CA Fronius 35-50mm | 1 |
| 8TE20010508340 | 8TE-17 Tig Extractor 8mtr CA Fronius 35-50mm | 1 |
| 8TE20010504000 | 8TE-17 Tig Extractor 4mtr M12x1 | 1 |
| 8TE20010508000 | 8TE-17 Tig Extractor 8mtr M12x1 | 1 |
| 8TE20010504210 | 8TE-17 Tig Extractor 4mtr 1/4'G | 1 |
| 8TE20010508210 | 8TE-17 Tig Extractor 8mtr 1/4'G | 1 |
| 8TE20010504220 | 8TE-17 Tig Extractor 4mtr 3/8'G | 1 |
| 8TE20010508220 | 8TE-17 Tig Extractor 8mtr 3/8'G | 1 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 500664 | 10N22 Collet 1.0mm | 5 |
| 500666 | 10N23 Collet 1.6mm | 5 | |
| 500668 | 70062 Collet 2.0mm | 5 | |
| 500670 | 10N24 Collet 2.4mm | 5 | |
| 500674 | 10N25 Collet 3.2mm | 5 | |
| 500676 | 54N20 Collet 4.0mm | 5 | |
| B | 500764 | 10N30 Collet body 1.0mm | 5 |
| 500766 | 10N31 Collet body 1.6mm | 5 | |
| 500768 | 70064 Collet body 2.0mm | 5 | |
| 500770 | 10N32 Collet body 2.4mm | 5 | |
| 500774 | 10N28 Collet body 3.2mm | 5 | |
| 500776 | 40648 Collet body 4.0mm | 5 | |
| C | 500520 | 10N50 Ceramic cup 6.4mm | 10 |
| 500522 | 10N49 Ceramic cup 7.9mm | 10 | |
| 500524 | 10N48 Ceramic cup 9.5mm | 10 | |
| 500526 | 10N47 Ceramic cup 11.1mm | 10 | |
| 500528 | 10N46 Ceramic cup 12.7mm | 10 | |
| 500530 | 10N45 Ceramic cup 16.0mm | 10 | |
| 500532 | 10N44 Ceramic cup 19.0mm | 10 | |
| D | 500346 | 57Y02 Back cap long | 5 |
| 500347 | 300M Back cap medium | 5 |
×
![]()
| 1 | 522030 | Torch body air cooled | 1 |
| 2 | 500442 | 10G6 Heat shield | 5 |
| 3 | 529967 | Handle grip complete with 1-button switch | 1 |
| 550150 | Inside handle strap (Not shown) | 1 | |
| 550169 | Inside hose strap (Not shown) | 2 | |
| 4 | 505918 | Switch module green 1-button complete | 1 |
| For other switch options see torch pages 52 | |||
| 5 | 551010 | Heat shield aluminium | 1 |
| 6 | 550532 | Suction head | 1 |
| 7 | 550102 | Touchpad adaptor | 1 |
| 8 | 550150 | Ball-and-socket joint | 1 |
| 9 | 550400 | Suction hose front 1m black | 1 |
| 10 | 550102 | Connection part for 25mm hose (When torch is 4mtr) | 1 |
| 550102 | Connection part for 30mm hose (When torch is 8mtr) | 1 | |
| 11 | 240102 | Suction hose 25mm black (4mtr) (When torch is 4mtr) | 1MTR |
| 240305 | Suction hose 30mm black (8mtr) (When torch is 8mtr) | 1MTR | |
| 12 | 550010 | Y-Piece set | 1 |
| 550212 | Inside strap to block suction smoke (Not shown) | 1 | |
| 550250 | Adaptor for 30mm hose on Y-Piece (When torch is 8mtr) | 1 | |
| 13 | 240102 | Suction hose 25mm black (4mtr) | 1MTR |
| 14 | 551008 | Adaptor Suction hose 25mm → 30mm | 1 |
| 550108 | Adaptor Suction hose 25mm → 38mm | 1 | |
| 15 | 550215 | Spring 27mm for Y-Piece | 1 |
| 16 | Power/Water cable (No contact shaft is depending on machine connection) | ||
| 17 | 206550 | Switch cable 4mm (QuickConnect) | 1 |
| 18 | 206552 | Switch cable 6mm (QuickConnect) | 1 |
| 19 | 206545 | Locking clip (QuickConnect) | 1 |
| 20 | 206559 | Switch cable end without plug (QuickConnect) | 1 |
| 21 | 555000 | Airflow meter Extractor | 1 |
| 22 | 443252 | Hose Cover (Optional) | 1 |
| 23 | 550004 | Leather Cover for start switch (Optional) | 1 |
| 24 | 260007 | Leather Cover for start switch (Optional) | 1 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| Part No. | Description | Pack Qty |
|---|---|---|
| 8TE60014704650 | 8TE-30 Tig Extractor 4mtr 35-50mm + tules + 1/4'G | 1 |
| 8TE60014708650 | 8TE-30 Tig Extractor 8mtr 35-50mm + tules + 1/4'G | 1 |
| 8TE60014704990 | 8TE-30 Tig Extractor 4mtr CA Fronius 35-50mm + tules | 1 |
| 8TE60014708990 | 8TE-30 Tig Extractor 8mtr CA Fronius 35-50mm + tules | 1 |
| 8TE60014704600 | 8TE-30 Tig Extractor 4mtr M12x1 + 3/8'G + 1/4'G | 1 |
| 8TE60014708600 | 8TE-30 Tig Extractor 8mtr M12x1 + 3/8'G + 1/4'G | 1 |
| 8TE60014704800 | 8TE-30 Tig Extractor 4mtr 3/8'G + 3/8'G + 1/4'G | 1 |
| 8TE60014708800 | 8TE-30 Tig Extractor 8mtr 3/8'G + 3/8'G + 1/4'G | 1 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 500650 | 13N20 Collet 0,5mm | 5 |
| 500652 | 13N21 Collet 1,0mm | 5 | |
| 500654 | 13N22 Collet 1,6mm | 5 | |
| 500656 | 70066 Collet 2,0mm | 5 | |
| 500658 | 13N23 Collet 2,4mm | 5 | |
| 500660 | 13N24 Collet 3,2mm | 5 | |
| B | 500750 | 13N25 Collet body 0,5mm | 5 |
| 500752 | 13N26 Collet body 1,0mm | 5 | |
| 500754 | 13N27 Collet body 1,6mm | 5 | |
| 500756 | 70067 Collet body 2,0mm | 5 | |
| 500758 | 13N28 Collet body 2,4mm | 5 | |
| 500760 | 13N29 Collet body 3,2mm | 5 | |
| C | 500500 | 13N08 Ceramic cup 6,4mm Gr. 4 | 10 |
| 500502 | 13N09 Ceramic cup 7,9mm Gr. 5 | 10 | |
| 500504 | 13N10 Ceramic cup 9,5mm Gr. 6 | 10 | |
| 500506 | 13N11 Ceramic cup 11,1mm Gr. 7 | 10 | |
| 500508 | 13N12 Ceramic cup 12,7mm Gr. 8 | 10 | |
| 500510 | 13N13 Ceramic cup 15,9mm Gr. 10 | 10 | |
| D | 500344 | 41V35 Back cap medium | 5 |
| 500340 | 41V24 Back cap long (standard) | 5 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 520700 | Torch body water cooled | 1 |
| 2 | 500400 | 598882 Heat shield | 5 |
| 3 | 8X9987 | Handle green complete with 1-button switch | 1 |
| 580150 | Inside handle stop (Not shown) | 1 | |
| 580160 | Inside hose stop (Not shown) | 2 | |
| 4 | 8X9518 | Switch module green 1-button complete | 1 |
| For other switch options we refer to page 49 | |||
| 5 | 581000 | Heat shield aluminium | 1 |
| 6 | 5803002 | Suction head | 1 |
| 7 | 5801002 | Torchbody adaptor | 1 |
| 8 | 581050 | Ball-and-socket joint | 1 |
| 9 | 580400 | Suction hose front 1 mtr black | 1 |
| 10 | 5810602 | Connection part for 25mm hose (When torch is 4mtr) | 1 |
| 5810622 | Connection part for 30mm hose (When torch is 8mtr) | 1 | |
| 11 | 340102 | Suction hose 25mm black p/mtr (When torch is 4mtr) | 1mtr |
| 340505 | Suction hose 30mm black p/mtr (When torch is 8mtr) | 1mtr | |
| 12 | 5802002 | Y-Piece set | 1 |
| 5802202 | Inside stop to block suction smoke (Not shown) | 1 | |
| 580250 | Adaptor to fit 30mm hose on Y-Piece (When torch is 8mtr) | 1 | |
| 13 | 340102 | Suction hose 25mm black p/mtr | 1mtr |
| 14 | 581068 | Adaptor Suction hose 25mm → 56mm | 1 |
| 581069 | Adaptor Suction hose 25mm → 38mm | 1 | |
| 15 | 580215 | Spring 27mm for Y-Piece | 1 |
| 16 | Power/Water cable On request as this is depending on machine connection | 1 | |
| 17 | 306550 | Switch cable 4mtr (QuickConnect) | 1 |
| 306552 | Switch cable 8mtr (QuickConnect) | 1 | |
| 18 | 306545 | Locking clip (QuickConnect) | 1 |
| 19 | 306559 | Switch cable end without plug (QuickConnect) | 1 |
| 20 | 585000 | Airflow meter Extractor | 1 |
| 21 | 442352 | Hose Cover (Optional) | 1 |
| 22 | 582004 | Leather Cover for 4mtr torch (optional) | 1 |
| 260027 | Leather Cover for 8mtr torch (optional) | 1 |
COMPLETE TORCHES
CONSUMABLES
SPARE PARTS
×
![]()
| Part No. | Description | Pack Qty |
|---|---|---|
| 8TE65014704650 | 8TE-35 Tig Extractor 4mtr 35-50mm + tules + 1/4'G | 1 |
| 8TE65014708650 | 8TE-35 Tig Extractor 8mtr 35-50mm + tules + 1/4'G | 1 |
| 8TE65014704990 | 8TE-35 Tig Extractor 4mtr CA Fronius 35-50mm + tules | 1 |
| 8TE65014708990 | 8TE-35 Tig Extractor 8mtr CA Fronius 35-50mm + tules | 1 |
| 8TE65014704600 | 8TE-35 Tig Extractor 4mtr M12x1 + 3/8'G + 1/4'G | 1 |
| 8TE65014708600 | 8TE-35 Tig Extractor 8mtr M12x1 + 3/8'G + 1/4'G | 1 |
| 8TE65014704800 | 8TE-35 Tig Extractor 4mtr 3/8'G + 3/8'G + 1/4'G | 1 |
| 8TE65014708800 | 8TE-35 Tig Extractor 8mtr 3/8'G + 3/8'G + 1/4'G | 1 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| A | 500664 | 10N22 Collet 1.0mm | 5 |
| 500666 | 10N23 Collet 1.6mm | 5 | |
| 500668 | 70062 Collet 2.0mm | 5 | |
| 500670 | 10N24 Collet 2,4mm | 5 | |
| 500674 | 10N25 Collet 3.2mm | 5 | |
| 500676 | 54N20 Collet 4.0mm | 5 | |
| B | 500764 | 10N30 Collet body 1.0mm | 5 |
| 500766 | 10N31 Collet body 1.6mm | 5 | |
| 500768 | 70064 Collet body 2.0mm | 5 | |
| 500770 | 10N32 Collet body 2,4mm | 5 | |
| 500774 | 10N28 Collet body 3.2mm | 5 | |
| 500776 | 406488 Collet body 4.0mm | 5 | |
| C | 500520 | 10N50 Ceramic cup 6.4mm | 10 |
| 500522 | 10N49 Ceramic cup 7.9mm | 10 | |
| 500524 | 10N48 Ceramic cup 9,5mm | 10 | |
| 500526 | 10N47 Ceramic cup 11.1mm | 10 | |
| 500528 | 10N46 Ceramic cup 12.7 mm | 10 | |
| 500530 | 10N45 Ceramic cup 16.0mm | 10 | |
| 500532 | 10N44 Ceramic cup 19.0mm | 10 | |
| D | 500346 | 57Y02 Back cap long | 5 |
| 500347 | 300M Back cap medium | 5 |
×
![]()
| Item | Part No. | Description | Pack Qty |
|---|---|---|---|
| 1 | 520701 | Torch body water cooled | 1 |
| 2 | 500402 | 18CG Heat shield | 5 |
| 3 | 8X9987 | Handle green complete with 1-button switch | 1 |
| 580150 | Inside handle stop (Not shown) | 1 | |
| 580160 | Inside hose stop (Not shown) | 2 | |
| 4 | 8X9518 | Switch module green 1-button complete | 1 |
| For other switch options we refer to page 49 | 1 | ||
| 5 | 581010 | Heat shield aluminium | 1 |
| 6 | 5804102 | Suction head | 1 |
| 7 | 5801002 | Torchbody adaptor | 1 |
| 8 | 581050 | Ball-and-socket joint | 1 |
| 9 | 580400 | Suction hose front 1 mtr black | 1 |
| 10 | 5810602 | Connection part for 25mm hose (When torch is 4mtr) | 1 |
| 5810622 | Connection part for 30mm hose (When torch is 8mtr) | 1 | |
| 11 | 340102 | Suction hose 25mm black p/mtr (When torch is 4mtr) | 1mtr |
| 340505 | Suction hose 30mm black p/mtr (When torch is 8mtr) | 1mtr | |
| 12 | 5802002 | Y-Piece set | 1 |
| 5802202 | Inside stop to block suction smoke (Not shown) | 1 | |
| 580250 | Adaptor to fit 30mm hose on Y-Piece (When torch is 8mtr) | 1 | |
| 13 | 340102 | Suction hose 25mm black p/mtr | 1mtr |
| 14 | 581068 | Adaptor Suction hose 25mm → 56mm | 1 |
| 581069 | Adaptor Suction hose 25mm → 38mm | 1 | |
| 15 | 580215 | Spring 27mm for Y-Piece | 1 |
| 16 | Power/Water cable On request as this is depending on machine connection | 1 | |
| 17 | 306550 | Switch cable 4mtr (QuickConnect) | 1 |
| 306552 | Switch cable 8mtr (QuickConnect) | 1 | |
| 18 | 306545 | Locking clip (QuickConnect) | 1 |
| 19 | 306559 | Switch cable end without plug (QuickConnect) | 1 |
| 20 | 585000 | Airflow meter Extractor | 1 |
| 21 | 442352 | Hose Cover (Optional) | 1 |
| 22 | 582004 | Leather Cover for 4mtr torch (optional) | 1 |
| 260027 | Leather Cover for 8mtr torch (optional) | 1 |
